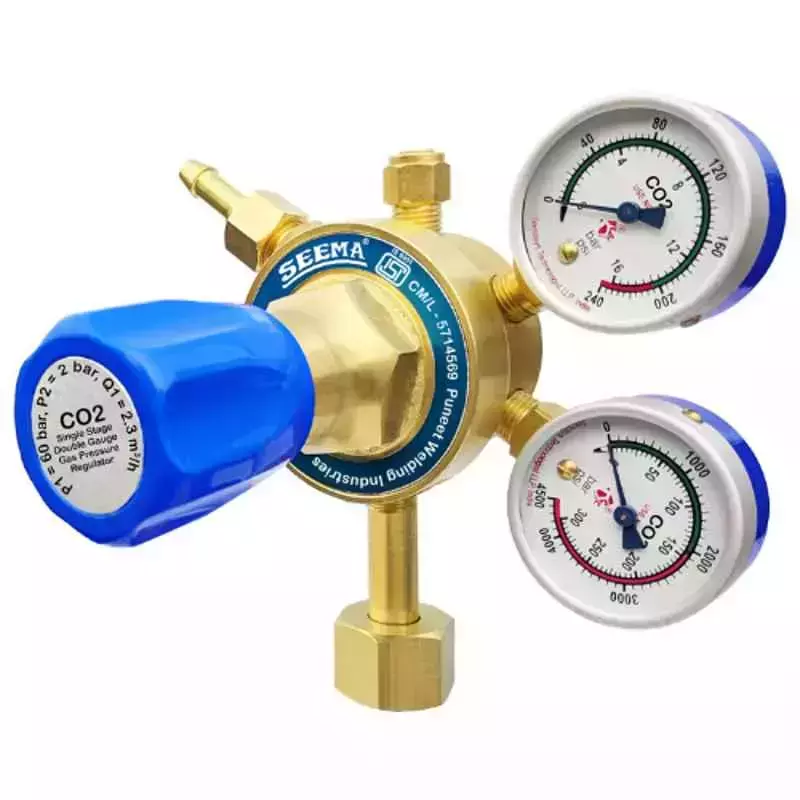

Single Stage Gas Pressure Regulator
Single Stage Regulators reduce gas pressure from the cylinder to the required outlet pressure in a single step. They are ideal for applications where inlet pressure remains relatively stable or where gas is used intermittently.
Gas Specifications
| Property | Details |
|---|---|
| Body Material | Forged Brass / Stainless Steel |
| Max Inlet Pressure | Up to 300 bar (4350 psi) |
| Outlet Pressure Range | 0–10 bar, 0–30 bar, or as required |
| Gauge Accuracy | Class 1.6 / 2.5 |
| Gas Compatibility | Oxygen, Nitrogen, Argon, CO₂, Hydrogen etc. |
Key Benefits
- Simple design for easy operation and maintenance
- Compact and economical for general gas usage
- Accurate pressure control for stable performance
- Suitable for welding, cutting, and lab gas distribution
Double Stage Gas Pressure Regulator
Double Stage Regulators reduce pressure in two steps—first from high pressure to an intermediate level, then to a stable outlet pressure—offering superior consistency regardless of inlet pressure variation.
Gas Specifications
| Property | Details |
|---|---|
| Body Material | Forged Brass / Stainless Steel |
| Max Inlet Pressure | Up to 300 bar (4350 psi) |
| Outlet Pressure Range | 0–10 bar, 0–30 bar, or as required |
| Gauge Accuracy | Class 1.6 / 2.5 |
| Gas Compatibility | Suitable for high-purity and specialty gases |
Key Benefits
- Enhanced outlet pressure stability
- Ideal for continuous operations or high-precision applications
- Reduces risk of pressure spikes during cylinder depletion
- Widely used in laboratories, R&D, and gas chromatographic systems
